Sample layouts and views
The following examples show common ways to arrange images using study layouts and views. Available views depend on your NilRead implementation.
1x2 layout

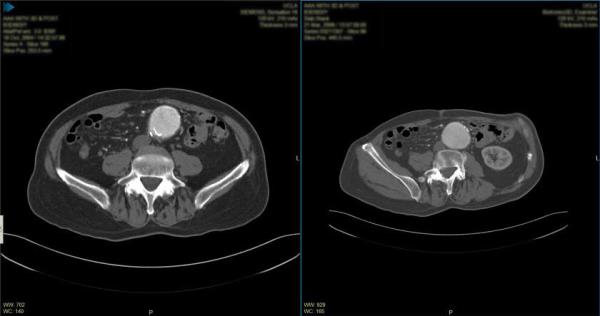

The following example shows a 1x2 study layout. This creates two side-by-side screens with a different series in each screen.
Multiple viewports

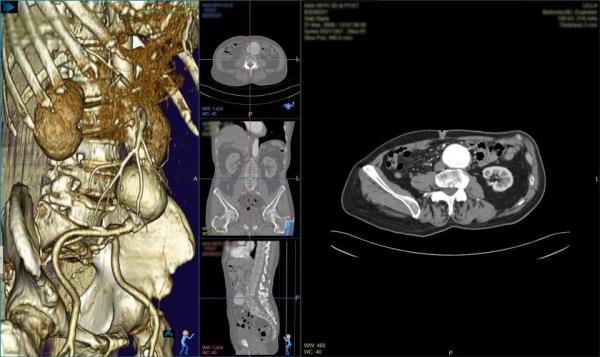

When a view is applied to a screen, the screen may be divided into multiple viewports. In the following example, the MPR 3D view has been applied to the first screen, dividing the screen into four viewports. Note that a different view (or the same view) could also be applied to the second screen.
Multiple monitors

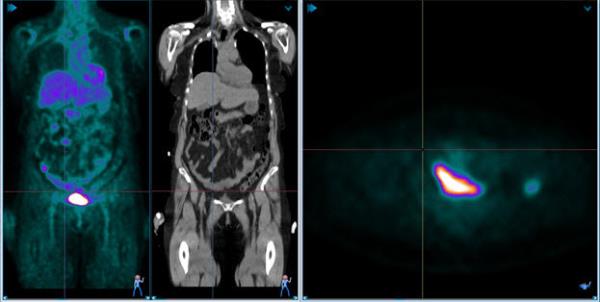

Each monitor can have its own study layout. In the following example, the first monitor displays two coronal MPR views and the second monitor displays an axial MPR.

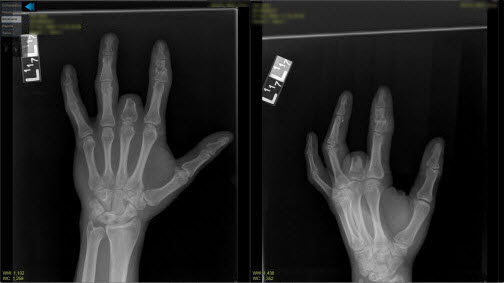

Side-by-side series comparison (study layout)

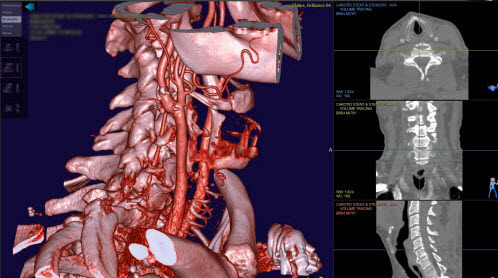

3D view

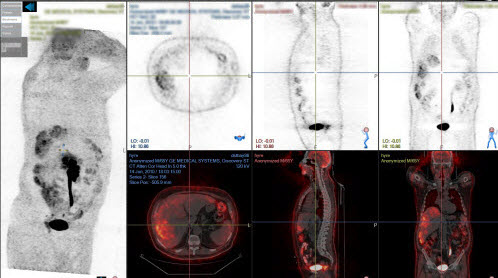

PET-C fusion view

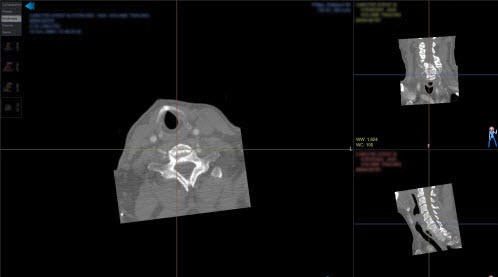

Slab view

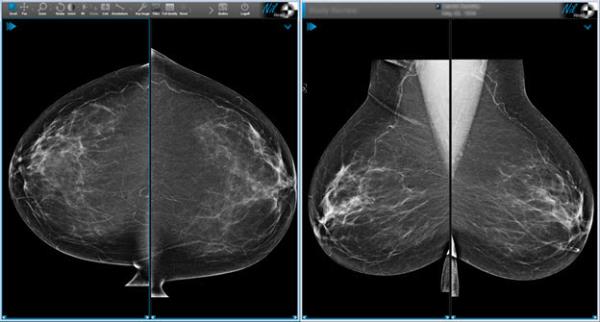

Multi-monitor auto-aligned mammography hanging protocol
Non-symmetric 2x1-1/3 study layout with ECG view
